Manufacture ID: GG504DTSHIELD

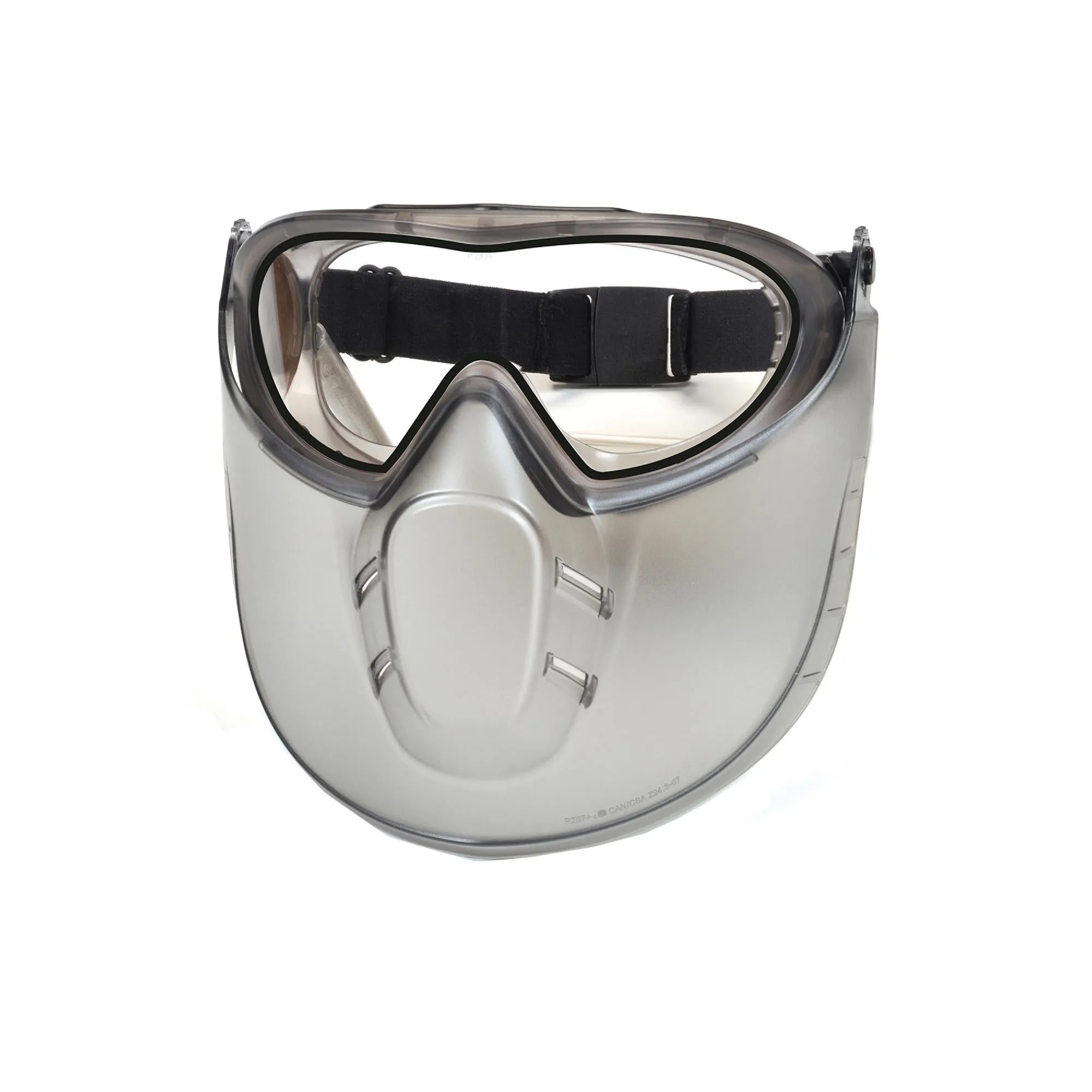

Pyramex Safety Capstone Direct/Indirect Goggle with IR5 Lens and Green Tinted Faceshield Attachment

Features:

- Fully adjustable elastic band.
- Fits over prescription glasses.
- Lens is coated to prevent fogging.
- Soft vinyl goggle body conforms to facial contours.
- Goggle provides protection against dust and chemical splash.
- Scratch resistant polycarbonate lens provides 99% UVA/B/C protection.
- Removable vent caps allow the user to remove when more ventilation is required or leave in place for unsurpassed chemical splash resistance.

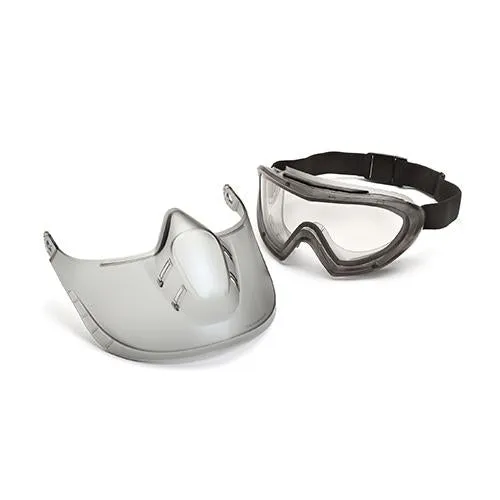

- Goggle incorporated with removable shield provides full face protection.
- 4 ventilation holes provide appropriate airflow.
- Ratchet shield allows user to open or close in 3 positions for adjustment.
- Polycarbonate shield conforms to the face offering increased impact and dust protection.

Lens Technology:

- Visible Light Transmitted (380-780nm): 96%
- UVA, UVB Blocked (200-380nm): 100%
- Blue Light Blocked (400-700nm): 9%
- IR Blocked (780-2000nm): 18%

Specifications:

General for Shield:

- Shield Thickness: 2.0mm
- Weight: 78gm
- Shield size vertical: 177.64mm
- Shield size horizontal: 195.58mm
- Shield size diagonal: 224.24mm
- Overall width (hinge-hinge): 185mm

General for Goggle:

- Lens Thickness: 2.3mm
- Weight: 132gm
- Lens size vertical: 78mm
- Lens size diagonal: 154mm
- Overall Length (Lens-Tip): 91mm
- Overall Width (Hinge-Hinge): 180mm
- Closest point between lens: N/A, single lens
- Strap Length: 232-365mm
- PD: 68mm Bridge: 45mm
- Lens Base: 5.5 curve

General for Disposable Visors:

- Lens Thickness: 0.1mm
- Weight: 2.4gm
- Lens size vertical: 6.9mm
- Overall Width: 32.4mm
- Bridge: 3.3mm

Note: Clear Lens: General purposes for indoor applications that require impact protection
